Cylinder & Bundle Markings – Quality & Service – Messer - Specialty Gases

Breadcrumb

Cylinder / bundles marking

CYLINDER AND BUNDLE INFORMATION

Cylinders & Markings

Contact form for every page

Contact us

select action

Form

Action Form 3

There has been an error processing your registration. Please double-check the information entered.
Choose an Option
By clicking I accept the GDPR policy of Messer SE & Co. KGaA. This agreement can be revoked at any time
Text to Identify Refresh CAPTCHA

Nested Applications

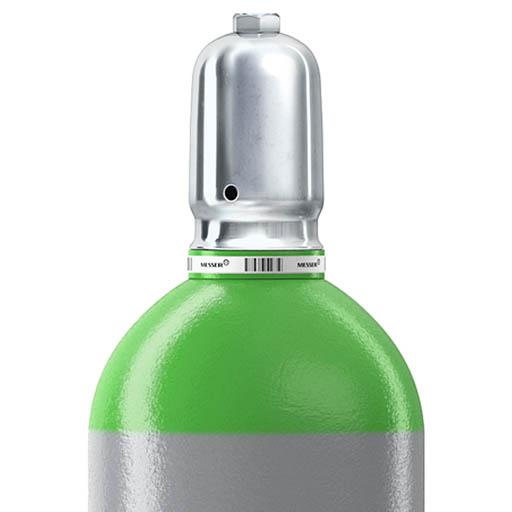

Shoulder Color: Bright Green







Shoulder Color: Bright Green

Examples:

  • Krypton
  • Xenon
  • Neon

Examples:

  • Banana & Fruit Ripening Gases
  • Gourmet Gases

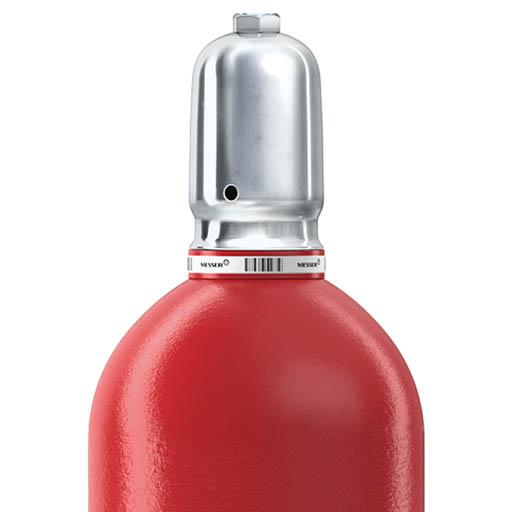

Shoulder Color: Red







Shoulder Color: Red

Examples:

  • Hydrogen
  • Ethane
  • Methane
  • Propane

Examples:

  • Forming Gases
  • Mixtures of Argon with Hydrogen

Nested Applications

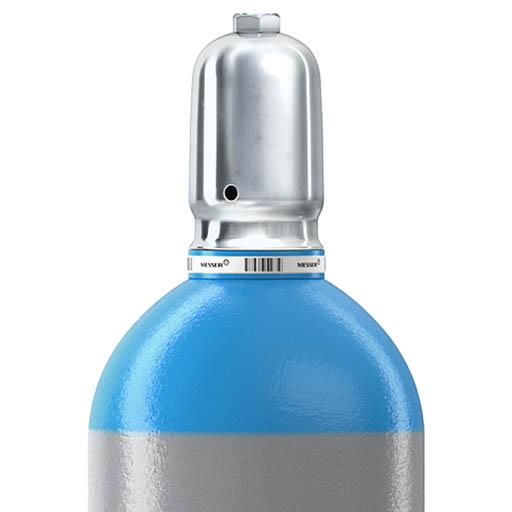

Shoulder Color: Light Blue







Cylinder Shoulder: Light Blue

Examples:

  • Gourmet O 70

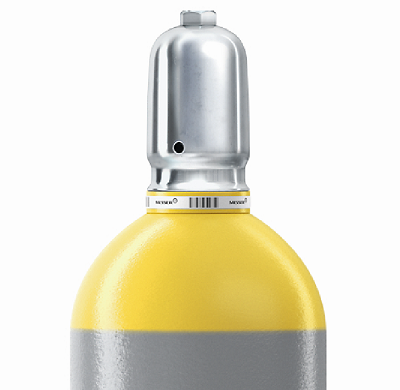

Shoulder Color: Yellow







Cylinder Shoulder: Yellow

Examples:

  • Ammonia
  • Sulphur dioxide
  • Chlorine
  • Nitric oxide
  • Carbon monoxide

Special Color Codings - Related Products

Brown - Helium

Brown - Helium





Argon - Shoulder Color: Green

Dark Green - Argon





Cylinders - Nitrogen - Cylinder

Black - Nitrogen





High Purity Gases - Helium

Helium

Products and applications of Helium

More More

High Purity Gases - Argon

Argon

Products and applications of Argon gas

More More

High Purity Gases - Nitrogen

Nitrogen

Products and applications of nitrogen 5.0 and 6.0

More More

Nested Applications

Cylinders - Oxygen - Cylinder

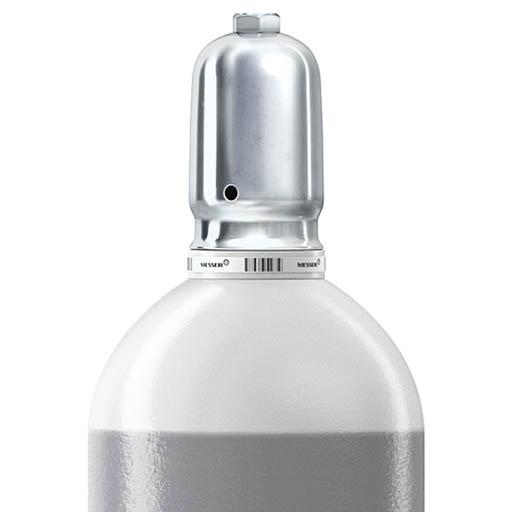

White - Oxygen





Cylinders - CO2 - Cylinder

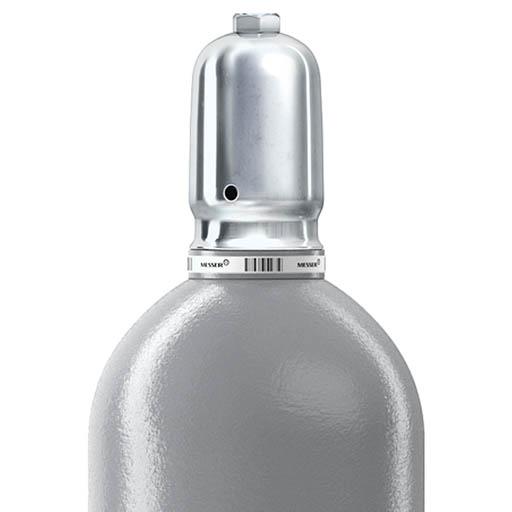

Grey - Carbon Dioxide





High purity gases

PURE GASES

From Argon to Xenon - Messer's extensive product portfolio of high purity gases

More info Now!

Packaging Sizes - Table

Cylinder
Gas Content
[m3]
Outside Diameter
[mm]
Length
[mm]
Empty Weight
[kg]
F 2 200 bar
0.4
100
350
2.5
F 5 200 bar
1
140
440
5.5
F 10 200 bar
2
140
810
12
F 20 200 bar
4
204
790
25
F 20 300 bar
6
204
815
39
F 33 300 bar
10
229
1,150
50
F 50 200 bar
10
229
1,500
57
F 50 300 bar
15
229
1,488
71
F 2 Alu 200 bar
0.4
102
390
2.6
F 5 Alu 200 bar
1
140
525
6.5
F 10 Alu 200 bar
2
140
995
11
F 20 Alu 200 bar
4
204
940
23.4
F 40 Alu 200 bar
8
229
1,455
46
F 50 Alu 200 bar
10
250
1,530
57.5


Bundles

 Gas Content
[m3]		 Dimensions (L / W / H)
[mm]		 Empty Weight
[kg]
B 12 x F 50 200 bar
120
L 990 / W 750 / H 1,838
920
B 12 x F 50 300 bar
180
L 990 / W 750 / H 1,838
1,100
MegaPack 4 (B4 x F 150 200 bar)
120
L 870 / W 880 / H 2,260
1,020
MegaPack 4 (B4 x F 150 300 bar)
180
L 870 / W 880 / H 2,260
1,020
MegaPack 6 (B6 x F 150 200 bar)
180
L 1,240 / W 880 / H 2,260
1,530
MegaPack 6 (B6 x P 150 300 bar)
270
L 1,240 / W 880 / H 2,260
1,530
MegaPack C4 (B4 x F 150 200 bar)
120
L 920 / W 930 / H 1,950
1,100
MegaPack C4 (B4 x F 150 300 bar)
180
L 920 / W 930 / H 1,950
1,100
MegaPack C6 (B6 x F 150 200 bar)
180
L 920 / W 1,330 / H 1,950
1,600
MegaPack C6 (B6 x P 150 300 bar)
270
L 920 / W 1,330 / H 1,950
1,600
